SGS Go And Not Go Gauge

E27 Lamp Cap Gauge Go No Go Thread Gauge Torque Gauge IEC60061 - 3

Gauge list:

Product Details:
Gauge Type: E27 Lamp Cap Gauge
Reference Standard: IEC60061-3

Model Number:

7006-27B-1 Go Gauge for E27 Caps on Finished Lamps
7006-28A-1 Not Go Gauge for E27 Caps on Finished Lamps

7006-27C-1 Go Gauge for Dimension “S1” of E27 Caps on Finished Lamps
7006-50-1 GAUGE FOR FINISHED LAMPS FITTED WITH E27 CAPS FOR TESTING CONTACT MAKING

7006-51A-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact during insertion
7006-51-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact

Gauge Instructions:
1.7006-27B-1 Go Gauge for E27 Caps on Finished Lamps
Purpose: To check the maximum dimensions of the screw thread and dimension T1 minimum of caps on finished lamps shown on sheet 7004-21
Testing: When the cap on a finished lamp has been screwed into the gauge as far as it will go, the centre contact shall be co-planar with,or project beyond,surface X.

2.7006-27C-1 Go Gauge for Dimension “S1” of E27 Caps on Finished Lamps
Purpose: To check the dimension S1 minimum and S1 maximum of E27 caps on finished lamps shown on sheet 7004-21
Testing:
Testing: When the cap on a finished lamp has been pushed into the gauge as far as it will go ,the plunger surface “W” shall be co-planar with or project beyond surface “X” but it shall not project beyond surface “Y”

3.7006-50-1
GAUGE FOR FINISHED LAMPS FITTED WITH E27 CAPS FOR TESTING CONTACT MAKING
Purpose : To check lamp dimensions for contact making in I.E.C. holders
Testing: The shape of the lamp with regard to the fit in the lampholder is assumed be correct , if the lamp can be pushed into the gauge till plane W reaches plane V or projects beyond it

4. 7006-28A-1 Not Go Gauge for E27 Caps on Finished Lamps
PURPOSE:To check the minimum outside(major) diameter of the screw thread , dimension “d”,of E27 caps on finished lamps shown on sheet 7004-21
TESTING:When the gauge is placed over the thread of the cap on a finished lamp,held cap uppermost ,the centre contact shall not project beyond surface “X” ,Only the weight of the gauge itself shall be used in the best.

5. (7006-51A-2)
E27 Gauge for caps on finished lamps for testing protection against accidental contact during insertion
Purpose : To check protection against accidental contact during insertion of caps E27 on finished lamps
Testing : The shape of the lamp with regard to protection against accidental contact is assumed to be correct if , when the lamp is pushed as far as possible into the gauge , surface W does not protrude beyond surface V

6.7006-51-2
E27 Gauge for caps on finished lamps for testing protection against accidental contact
Purpose : To check protection against accidental contact of caps E27/51X39 on finished lamps
Testing : The shape of the lamp with regard to protection against accidental contact is assumed to be correct if , when the lamp is pushed as far as possible into the gauge , surface W does not protrude beyond surface V

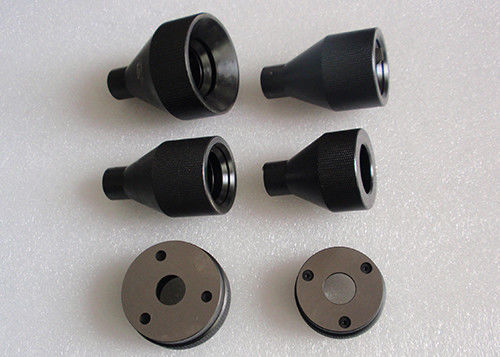

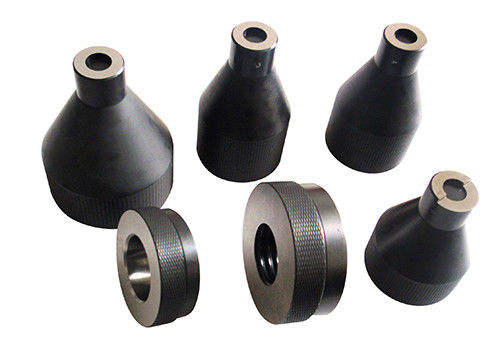

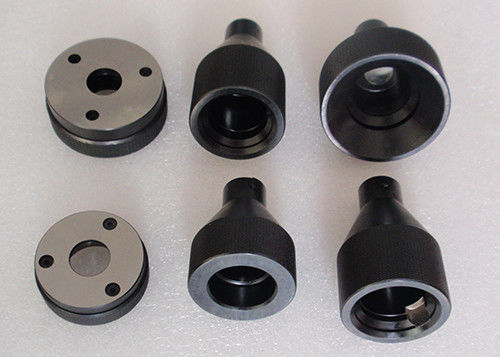

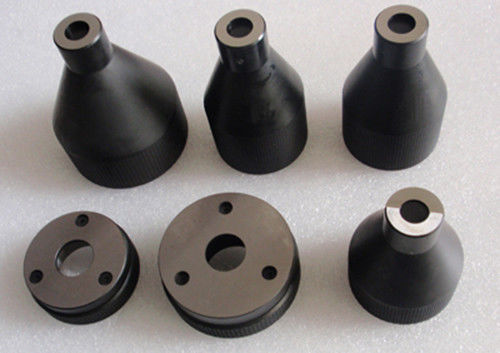

Gauge for E27 As follows
7006-27B-1 Go Gauge for E27 Caps on Finished Lamps
7006-28A-1 Not Go Gauge for E27 Caps on Finished Lamps
7006-27C-1 Go Gauge for Dimension “S1” of E27 Caps on Finished Lamps
7006-50-1 GAUGE FOR FINISHED LAMPS FITTED WITH E27 CAPS FOR TESTING CONTACT MAKING
7006-51A-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact during insertion
7006-51-2 E27 Gauge for caps on finished lamps for testing protection against accidental contact

Guangzhou Shice Equipment Co., Ltd. (hereinafter referred to as Guangzhou Shice) is the one professional focus on IEC testing equipments, IP waterproof testing equipments, electronic testing products and other testing products. Guangzhou Shice is professionally dedicated in providing laboratory testing equipment. We are now the high-tech enterprises with technical superiority and R & D capabilities in test instruments industry.
