Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel And Nylon | Standards: | IEC61032, IEC60335, UL1017 |
|---|---|---|---|
| Warranty: | 24 Months | Usage: | Children Safety Tester |
| Name: | IEC61032 Test Probe 18 19 | Figure 12: | Children Finger Probe 18 |
| Figure 13: | Children Finger Probe 19 | Knurled Finger Length: | 57.9/44 Mm |
| High Light: | IEC 60335 Test Finger Probe,SS Children Safety Test Finger Probe |
||

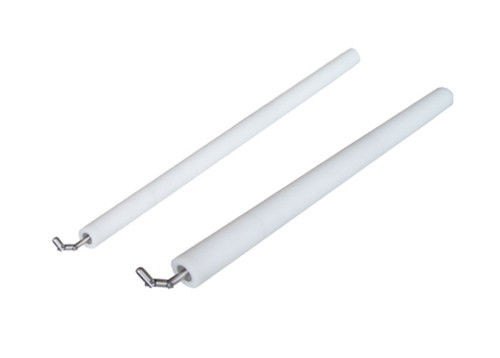

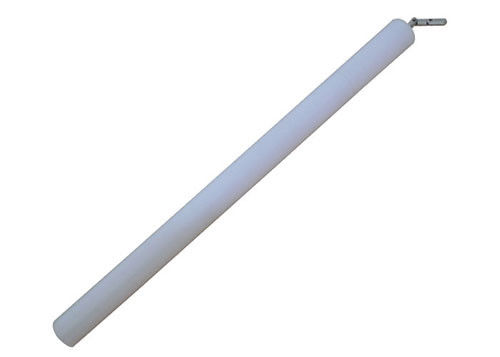

IEC 61032 Figure 12 Test Probe 18 Small Finger Probe Ф8.6
This probe conforms to the standard requirements of IEC 61032 figure 12 test probe 18, IEC 60065:2014 clause 9.1.1.3, etc. This probe is intended to simulate access to hazardous parts by children of more than 36 months and less than 14 years.
| Parameters /Model | Children’s finger probe SC-F1218 |
| Hemispherical radius (mm) | R4.3±0.05 |
| Finger probe diameter (mm) | Ф8.6±0.1 |
| Finger probe length (mm) | 57.9±0.15 |
| Axes of joints distance (mm) | 19.3 |
| Collar diameter (mm) | Ф38.4±0.3 |
| Collar length (mm) | 101.6±0.3 |
| Extension handle diameter (mm) | Ф38.1±0.3 |
| Extension handle length (mm) | 451.6±0.8 |
| Finger probe material (mm) | Stainless steel |
| Collar and handle material (mm) | Nylon |
Product information:
Children finger probe SC-F1218 conforms to IEC61032 figure 12 finger probe 18, IEC60335.1,UL1017 standards. It is used to simulate the children who are older than 36 months and younger than 14 years to test whether the hazardous parts can be touched.
IEC 61032 test probe 18 children safety test finger probe made in exact accordance with IEC 61032, Figures 12 and 13, EN71, ASTM F963.
The child's finger is also called out in U.S. Federal Regulations, Title 16, Volume 2, Chapter 11, Part 1500 for consumer product.
Children finger probe SC-F1319 conforms to IEC61032 figure 13 finger probe 19, IEC335.1,UL1017 standards. It is used to simulate the children who are younger than 36 months to test whether the hazardous parts can be touched.

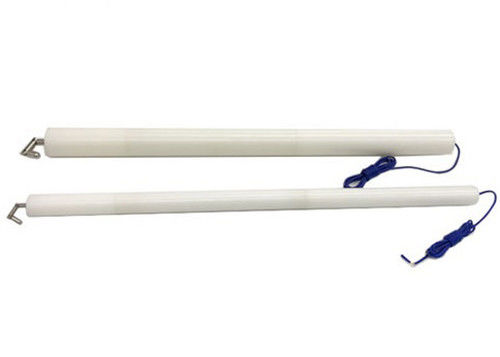

Customizable: It can be used for anti-electric shock test when equipped with amphenol connector.
