Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Standards: | IEC60065 Figure 11 IEC60884 , IEC60598 |
|---|---|---|---|
| Warranty: | 12 Months | Plug: | UL Plug*1, Australia Plug*1, All-purpose Plug*1 |
| Load: | 0.5N * 1 / 1N * 1 / 1.25N * 1 / 2.5N * 1 | The Distance From The Contact Surface And The Axis Of The Surface: | 8 Mm |
| Function: | To Check Plug And Socket Torque | Number Of Socket Clamps: | 3, If Need More, Please Remark |
| High Light: | IEC60598 IEC Test Equipment,IEC60065 IEC Test Equipment,IEC60884 Socket Outlet Torque Balance Test Apparatus |
||

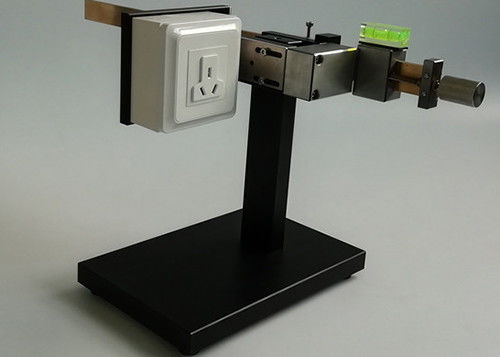

IEC60884 Plug and Socket Outlet Torque Balance Test Apparatus
Application:
- Plug and Socket Torque Tester/Device is for compliance is checked by engaging the device, as during intended use, with the socket-outlet of a test apparatus.

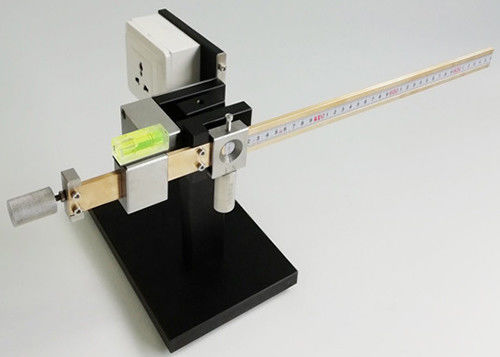

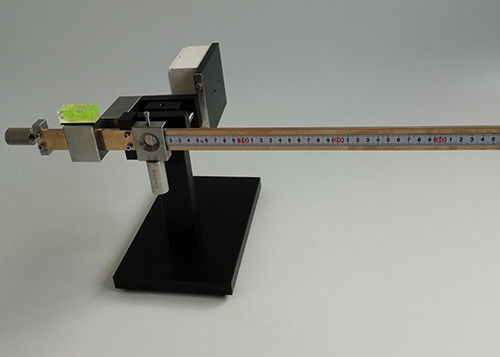

- Plug Torque Tester/Equipment is a device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets. The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.

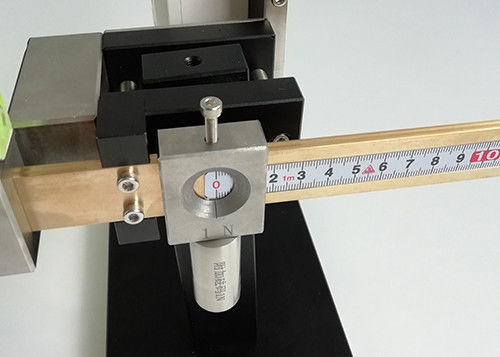

- With the machine not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position. After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position o a weight on the balancing arm.
Technical Parameter:
| Load | 0.5N x 1 ,1N x 1 , 1.25N x 1 , 2.5N x 1 |
| Plug | UL plug*1, European plug*1,all-purpose plug*1 |
| Conforms to standard | IEC60884,VDE0620,IEC60598,IEC60065Fig11 |
| Arm of force | 0-200mm |
| The distance from the contact surface and the Axis of the surface | 8mm |
Due to the different standards of different countries,the device are contained three socket clamps, If the needed clamps are more than 3 ,on request.
Confirms:
IEC60884
IEC60598
IEC60065
IEC60335
BS1363.3
VDE0620
