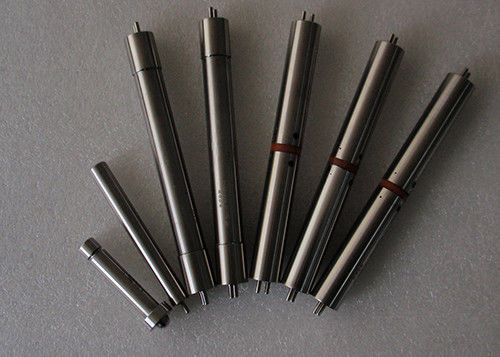

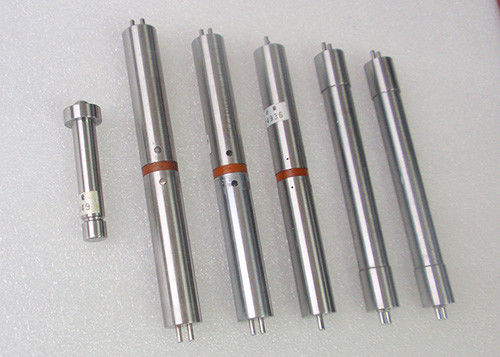

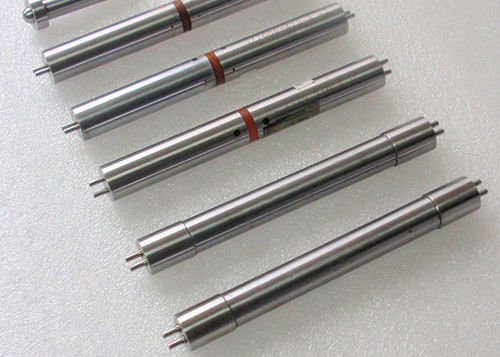

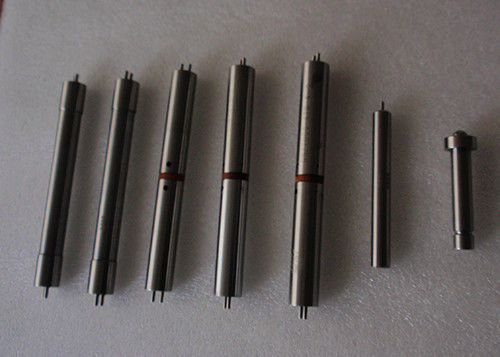

T5 Lampholders IEC60061-3 Pin Gauge Lamp Cap Gauge

T5 Lampholders IEC60061-3 Pin Gauge Lamp Cap Gauge

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  T5 Lampholders IEC60061-3 Pin Gauge Lamp Cap Gauge Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-G5H1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD200-1500 piece
Packaging Details: Plastic Tool Box
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 999 units per month
Detailed Product Description
Standards: IEC60061-3 Warranty: 12 Months
Material: Stainless Steel Testing: G5/T5 Lampholder
7006-47A-2: Plug Gauge For Lampholders For Testing Protection Against Accidental Contact G5/T5 7006-47B-4: Double Ended Gauges For A Combined Pair Of Lampholders For Testing Contact-making G5/T5
7006-47C-3: Double Ended Go Gauges For A Combined Pair Of Lampholders G5/T5 Customerize: OEM
High Light:

IEC60061-3 Lamp Cap Gauge

,

CNAS Lamp Cap Gauge

,

SGS pin gauge

G5 Lampholders Gauge Testing Protection Pin Gauge For T5 Lampholders





Gauge Number Gauge Name
7006-47A-2 Plug gauge for lampholders for testing protection against accidental contact G5/T5
7006-47B-4 Double ended gauges for a combined pair of lampholders for testing contact-making G5/T5
7006-47C-3

Double ended go gauges for a combined pair of lampholders G5/T5



Confirms: IEC60061-3 G5 /T5

Gauge for G5 /T5 lampholders list:

I) 7006-47A-2 Plug gauge for lampholders for testing protection against accidental contact G5/T5

II) 7006-47B-4 Double ended gauges for a combined pair of lampholders for testing contact-making G5/T5

III) 7006-47C-3 Double ended go gauges for a combined pair of lampholders G5/T5



I) 7006-47A-2
Plug gauge for lampholders for testing protection against accidental contact G5
Purpose: To check protection against accidental contact in lampholders G5.
Testing: When the hemisphere Y has been inserted into the orifice of the lampholder
as far as it will go, neither indicator lamp light up.



II) 7006-47B-4
Double ended gauges for a combined pair of lampholders for testing contact-making G5
Purpose: To check contact-making in a combined pair of flexible or inflexible lampholders G5.
Testing: The combined pair of lampholders G5 shall be assumed to be correct if both indicator lamps light
up when each of the See IEC60400, Clause 10: Construction.



III) 7006-47C-3 G5
Double ended go gauges for a combined pair of lampholders G5

Purpose: To check a combined pair of flexible or inflexible lampholders G5 with regard to entry of lamp pins.

Testing: It shall be possible to insert each gauge in turn into a combined
pair of lampholders. For the maximum forces to be applied see IEC publication 400, sub clasue 10.5



We produce many kinds of gauges

Lamp cap gauge and lampholder gauges for E5, E10, E11, E12, E14, E17, E26, E27, E39, E40 .....
Lamp cap gauge and lampholder gauges for G5.3, GX5.3, GU10q, G8.5 , G4, G9, G5, G13......

Lamp cap gauge and lampholder gauges for PG12, PG13, PGJ19-1-2-3-4-5, PG20, P23......

Lamp cap gauge and lampholder gauges for R17d, RX7s, W2.1X9.5d, W2.5X16, W3X16d......

Lamp cap gauge and lampholder gauges for B15, B15A, B22, BY22d, BA9......
