Product Details:
Payment & Shipping Terms:
|
| Loading Cartridge Diameter: | Φ9.550±0.025mm | Barrel Diameter: | Φ2.095±0.005mm |
|---|---|---|---|
| Temperature Range: | Room Temperature+10°C To 450°C | Spout Length: | 8.000±0.025mm |
| Output Method: | Mini-automatic Printout | Cut Material Way: | One Hand Automatic Cut Material |
| Test Load: | A Total Of Eight, Eight Sets Of Weights | Standard Test Load: | 0.325kg, 1.kg, 2.1kg, 3.kg, 5.kg, 10.0kg, 12.kg, 21.6kg |
| Weight Accuracy: | ±0.5% | Power: | AC220V±10% 50HZ |
| High Light: | TUV IEC Test Equipment,SGS IEC Test Equipment,mfi melt flow index |
||

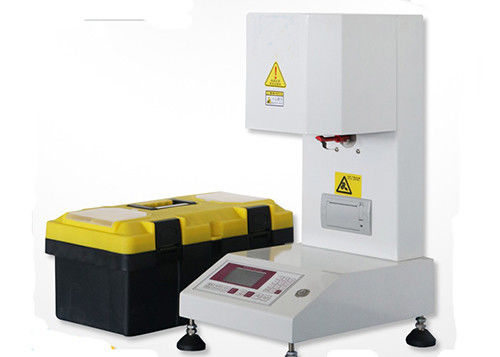

MFR And MVR Mfi Melt Flow Index Test Equipment Melt Flow Indexer
Product Specifications:
| Model No | SC-MI-400 | |
| Machine size(W*H*D) | 250*540*390mm | |
| Temperature range | Room temperature+10°C to 450°C | |
| Performance | Temperature fluctuation | ±0.2℃ |
| Temperature uniformity | ±1°C | |
| Temperature display resolution | 0.1℃ | |
| Time Display Resolution | 0.1S | |
| Barrel diameter | Φ2.095±0.005mm | |
| Spout length | 8.000±0.025mm | |
| Loading cartridge diameter | Φ9.550±0.025mm | |
| output method | Mini-automatic printout | |
| Cut material way | One hand automatic cut material | |
| Test load | A total of eight, eight sets of weights | |
| Standard test load | 0.325kg, 1.kg, 2.1kg, 3.kg, 5.kg, 10.0kg, 12.kg, 21.6kg | |
| Weight accuracy | ±0.5% | |
| Power | AC220V±10% 50HZ | |
Description:
Melt Flow Indexer can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.
Characteristics:
1. Fast heating speed, very small overshoot.
2. High precision of constant temperature.
3. Melt Flow Indexer Can fast recover to constant temperature condition after padding.
4. Melt Flow Indexer Can use manual and automatic material trimming test method.

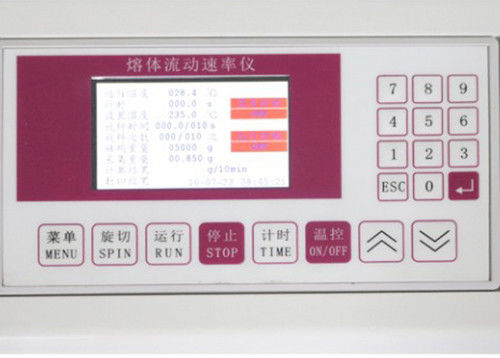

5. LCD display, equipment with built-in micro printer, test result can be printed automatically.
Features:
