| Standards: | UL474 Figure 5.1 | Material: | Stainless Steel And Plastic |
|---|---|---|---|
| Warranty: | 12 Months | Usage: | Safety Electronic Protection |
| Test Finger Length: | 234mm | Type: | Articulated Finger Probe |
| Knurled Length: | 30/30/40mm | OEM/ODM: | Welcome Order |
| High Light: | UL 234mm articulated probe,234mm articulated probe,ODM ul finger probe |
||
UL474 Figure 5.1 UL Accessibility probe, jointed test finger, UL test probe
Parameters
| Test finger length | 234mm |
| Knurled length | 30/30/40mm |
| Material | stainless steel and nylon |
| Reference | UL507,UL982,UL1278,UL1062,UL1310,UL474,UL60065 |
The UL accessibility probe is also called UL articulated probe or jointed test finger probe.
It conforms to many standard requirement of
UL474 Fig 5.1,
UL507 Fig 9.2(PA100A),
UL982 Fig 7.1,
UL1017 Fig 2,
UL1062 Fig1.2,
UL1278Fig 8.3,
UL1310 Fig 16.2,
UL6500 Fig14,
UL60065 Fig14 and UL60950 Fig NAF.1.
Palm simulator and restricted joint movement simulates human finger movement.
It is widely used in the enclosure protection test of the electrical equipment.
Introduce:
Mainly used for the inspection to prevent the body touch dangerous live parts,heating or hot parts, mechanical components, as well as inspection of solid foreign bodies into the equipment. It is necessary for protection against electric shock test of household and similar electrical appliances
This is the "UL" test finger, researched and designed by UL and required by most UL Standards. Palm simulator and restricted joint movement simulates human finger movement. Made of all nylon. Bell-Core accessory available.The handle is made of nylon. The finger is made of stainless steel.

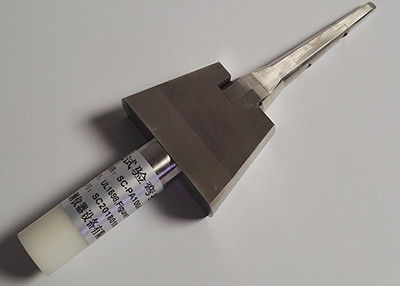

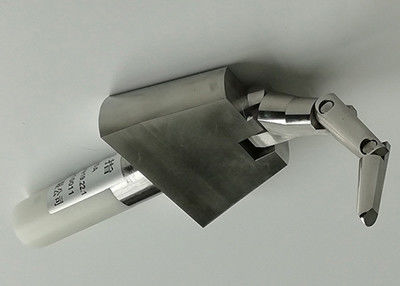

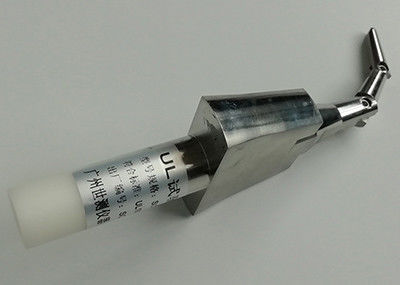

Picture view:
