Product Details:
Payment & Shipping Terms:
|
| Standards: | VDE 0620 | VDE0620-1-Lehre1: | Socket R Gauge (5.0,5.8,6.0) |
|---|---|---|---|
| VDE0620-1-lehre2: | Minimum Opening Width And Minimum Pull Out Force Of | VDE0620-1-Lehre3: | Bipolar Plug Force |
| VDE0620-1-Lehre4: | Bipolar Plug With Earthing Contact Insertion Flanking Force | VDE0620-1-Lehre5: | To Test The First Time Contact Closure Interval Gauge |
| VDE0620-1-Lehre8: | The Maximum Opening Width Of The Contact Jack | VDE0620-1-Lehre16a: | The Maximum Pullout Force Plug (16a) |
| High Light: | VDE0620 Plug Socket Tester,TUV Plug Socket Tester,VDE0620 Plug Socket Gauge |
||

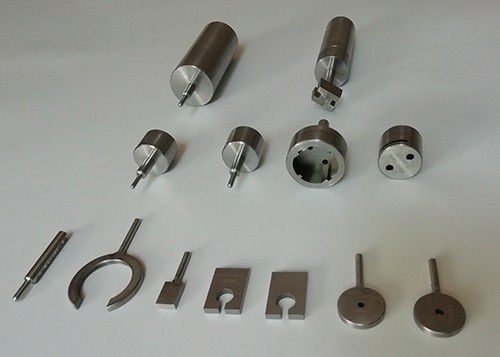

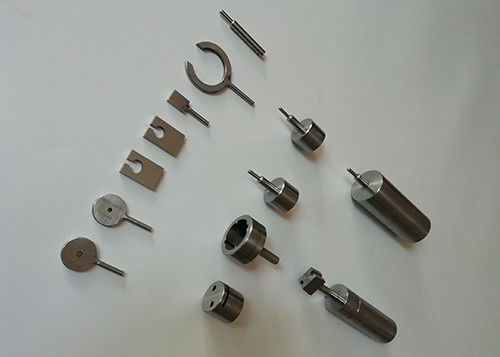

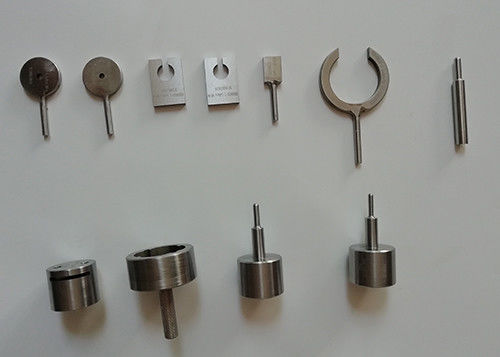

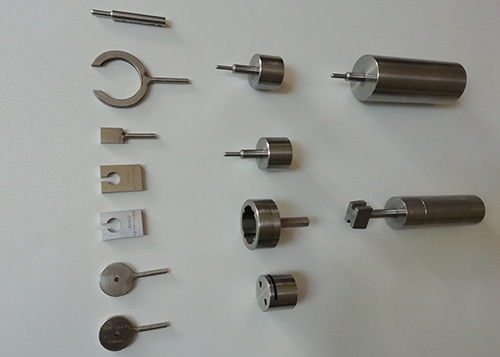

VDE0620 Plug Socket Tester Germany Plug And Socket Measuring Gauge
Gauge list:
| Figure number | Project name | Number |
| DIN-VDE0620-1-Lehre1 | Socket R gauge (5.0,5.8,6.0) | 3 |
| DIN-VDE0620-1-lehre2 | Minimum opening width and minimum pull out force of | 2 |
| contact jack | ||
| DIN-VDE0620-1-Lehre3 | Bipolar plug force | 1 |
| DIN-VDE0620-1-Lehre4 | Bipolar plug with earthing contact insertion flanking force | 1 |
| DIN-VDE0620-1-Lehre5 | To test the first time contact closure interval gauge | 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre6 | Pin diameter | 1 sets of /4 parts |
| DIN-VDE0620-1-Lehre7 | Pin distance | 1 /2 combination |
| DIN-VDE0620-1-Lehre8 | The maximum opening width of the contact jack | 1 |
| DIN-VDE0620-1-Lehre9 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-Lehre10-A | The impossibility of the contact of the single pole contact hole A | 1 |
| DIN-VDE0620-1-Lehre10-B | Unipolar contact hole contacts not the possibility of B | 1 |
| DIN-VDE0620-1-Lehre11 | No bipolar plug ground contact can not be inserted | 1 |
| DIN-VDE0620-1-Lehre12 | The possibility of unipolar insertion plug (including 250 grams | 1 sets of /4 parts |
| and 1000 grams of weight and the positioning rack) | ||
| DIN-VDE0620-1-Lehre13 | After normal operation test of live parts check protection | 1 sets |
| inside the door can not touch the probe | ||
| DIN-VDE0620-1-Lehre14 | On both sides of the ground test | 1 |
| DIN-VDE0620-1-Lehre15 | Live parts check protection inside the door and strengthen the | 1 |
| protection of live parts socket can not touch with the probe | ||
| DIN-VDE0620-1Fig15 | Gauge | 1 |
| DIN-VDE0620-1-Lehre16a | The maximum pullout force plug (16a) | 1 |
| DIN-VDE0620-1-Lehre16d | The maximum pullout force plug (16d) | 1 |
| DIN-VDE0620-1-Lehre17 | Lehre17 | 1 |
| DIN-VDE0620-1-Lehre18 | Lehre18gauge | 1 |
| DIN-VDE0620-1-EN50075 | Interchangeability test plug gauge | 1 |
| DIN-VDE0620-1-49440-L1 | 49440-L1- on the IPX4 test socket | 1 |
| DIN-VDE0620-1-49440-L2 | 49440-L2- on the IPX4 test socket | 1 |
| DIN-VDE0620-1-49440-L1-L2 | Bipolar grounded plug diameter gauge and test equipment | 1 sets of 3 parts |
| DIN-VDE0620-1-Bild15 | Test pressure device | 1 sets |
| DIN-VDE0620-1-Bild14 | Bild14 gauge | 1 sets |
| DIN-VDE0620-1-Bild43 | Bild43 gauge | 1 sets of 2 parts |
Confirms: DIN-VDE0620-1
Including VDE0620 Plug Socket Gauge, we are producing
Japan plug socket gauge,
UL plug socket gauge,
NFC plug socket gauge,
India plug socket gauge
......
For more info, please contact us.
Guangzhou Shice are designed and manufactured as per the requirements of IEC, EN, UL, VDE, BS, AS, ISO standards and etc. Our main products are: waterproof and dustproof (IP) environmental test equipment; switch, plug, socket and coupler test equipment; mechanical strength impact test equipment; material fire hazard test equipment, enclosure protection test probes; household appliances safety test equipment; wire and cable test equipment; luminaires test equipment; electric tools test equipment. Our products are widely used in domestic and worldwide measurement & certification institutions, inspecting mechanism, laboratories, export & import inspection and quarantine bureau, various production companies and etc. Our customer includes Bureau Veritas, CSA, ITS, UL, TUV Rheinland, TUV SUD, SGS and etc.
