| Standards: | IEC60529 IEC61032 IEC60335 IEC61029 IEC60745 IEC60065 IEC60950 | Material: | Stainless Steel And Nylon |
|---|---|---|---|
| Probe A: | Test Sphere Probe | Probe B: | IEC Jointed Finger Probe |
| Probe C: | 2.5 Mm Test Rod | Probe D: | 1.0 Mm Test Wire |
| IP Code: | IP1X IP2X IP3X IP4X | Customized Support: | OEM, ODM |
| High Light: | IP2X Test Finger,IEC60529 IP2X Test Finger,IP4X ul finger probe |
||

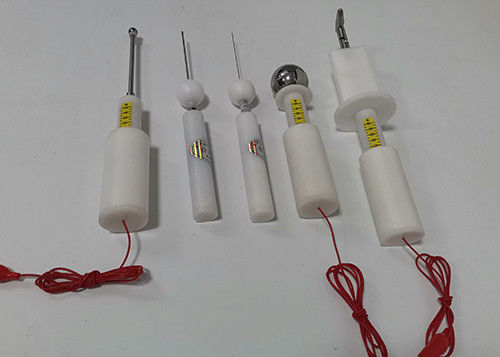

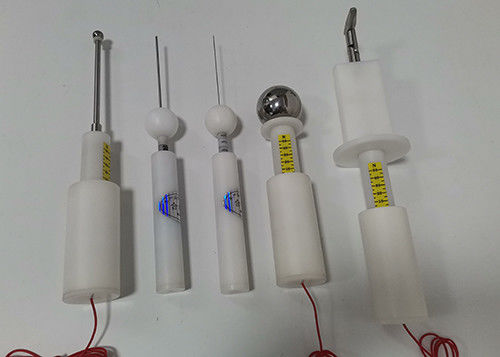

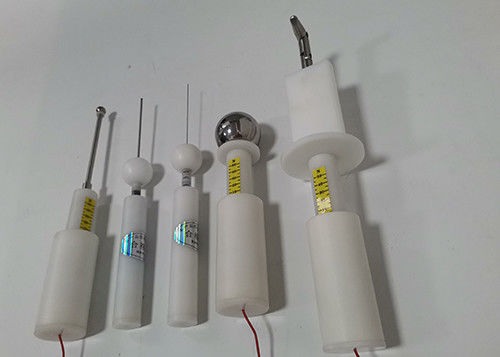

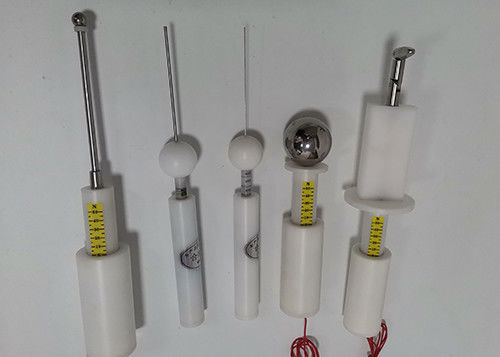

Test Probe To Verify Protection Against Access IEC60529 IP1X - 4X
Introduce:
We could provide various test probes according to IEC61032, IEC60335, IEC60065, IEC60529, IEC60745, IEC60884, etc. standards and also customized non-standard products. Welcome to contact us for more details.
Parameters:
| Probe A | Test sphere probe | IEC60529 IEC61032 IEC60335 IEC61029 IEC60745 IEC60065 IEC60950 |
Ball diameter 50mm Baffle plate diameter 45mm Baffle plate thickness 4mm Handle diameter 10mm Handle length 100mm Material nylon + stainless steel |
| Probe B |
IEC Jointed Finger Probe (w/ banana jack in handle) |
IEC60529 IEC61032 IEC60335 IEC60884 IEC60745 IEC60045 IEC60950 |
Knurled finger diameter 12mm Knurled finger length 80mm Baffle plate diameter 50mm Baffle plate length 100mm Baffle thickness:20mm |
| Probe C | 2.5 mm Test Rod | IEC61032 IEC60529 |
Test probe length 100mm Test probe diameter 2.5mm Dam-sphere diameter 35mm Handle diameter 10mm Handle length 100mm Material nylon + hardened steel |
| Probe D | 1.0 mm Test Wire | IEC61032 IEC60529 |
Test probe length 100mm Test probe diameter 1mm Dam-sphere diameter 35mm Handle diameter 10mm Handle length 100mm Material nylon + hardened steel |
IEC Accessibility Test Probe Application:
Guangzhou shice offers a wide range of test probe to meet the most common standards including those from IEC, EN,UL,GB and others.
Such standards require the checking of accessibility to dangerous parts of home electronics and toys, tools appliances and a hose of other products that are intended to be protected by enclosures.These probes simulate human fingers,tools and other items that would be hazardous to come in contact with certain parts of product.
