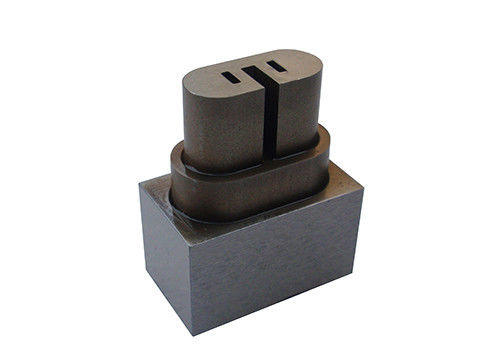

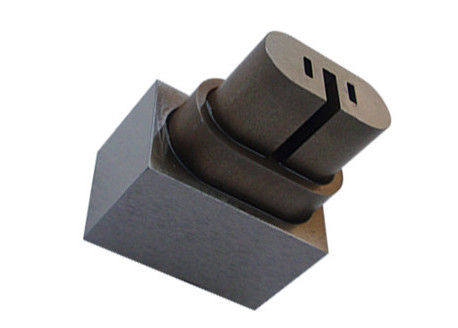

PGJ19-1 Lamp Cap Gauge , IEC60061-3 High Pressure Gauge

Go Gauge For Caps PGJ19 - 1 - 2 - 3 - 4 - 5 High Pressure Gauge

Name:

Application:

Guangzhou Shice Equipment offers a wide range of gauge to meet the most common standards including those from

IEC, EN, UL, GB,DIN,VDE and others.

Such standards require the checking of size & definition etc.

These gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60 HRC and a roughness

according to standard require.

Each gauge is supplied with a certificate of calibration.

Conforms To:

IEC60968-1, IEC60061-3

Specification:

IEC60061-3 PGJ19-1, PGJ19-2, PGJ19-3,  PGJ19-4 and PGJ19-5.

Go gauge for caps PGJ19-1, PGJ19-2, PGJ19-3
7006-110-1
Purpose: To check the contact section of caps PGJ19-1, PGJ19-2 and PGJ19-3.
Testing: It shall be possible, without using undue force, to insert the gauge into the contact
section of a PGJ19-1, PGJ19-2 or PGJ19-3 cap until surface Y of the gauge is seated on the rim of
The lamp cap.
It shall not be possible to insert the gauge into the contact section of a PGJ19-4 or PGJ19-5 cap.

7006-110A-1
Go Gauge for caps PGJ19-4 PGJ19-5
Purpose: To check the contact section of caps PGJ19-4 and PGJ19-5.
Testing: It shall be possible, without using undue force, to insert the gauge into the contact section of
a PGJ19-4 or PGJ19-5 cap until surface Y of the gauge is seated on the rim of the lamp cap.
It shall nto be possible to insert the gauge into the contact section of a PGJ19-1, PGJ19-2 or PGJ19-3 cap.
