Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC60335-2-9 Clause 19.101 | Test Sample: | Toasters |
|---|---|---|---|
| Application: | To Check The Power-on And Off Endurance That The Toasters Are Operated At Rated Power Supply And Under Normal Operation. | Cooling Fan Power: | 100W |
| Temperature Measuring Device: | Infrared Thermometer (optional) | Drive Mode: | Motor-driven |
| Dimensions: | L500mm × W620mm × H800mm | Weight: | 100kg |
| High Light: | 100W Toaster Switch Endurance Tester,SGS Toaster Switch Endurance Tester,100kg 100W Household Appliance Test Device |
||

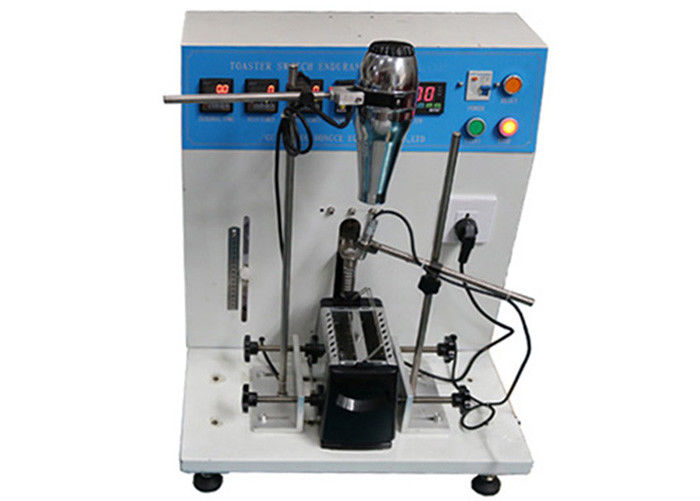

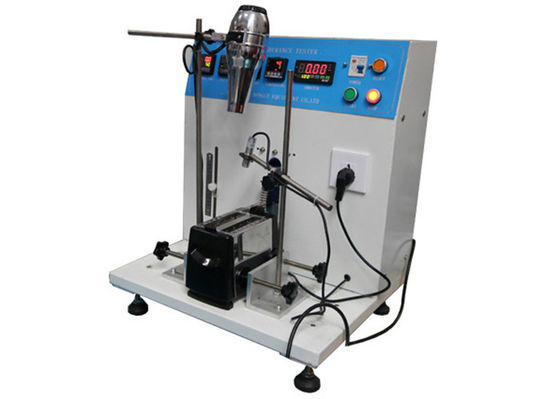

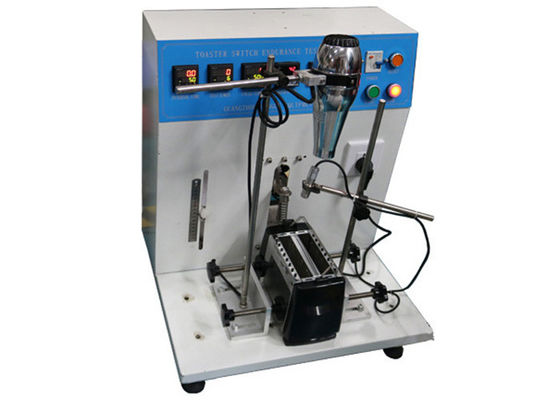

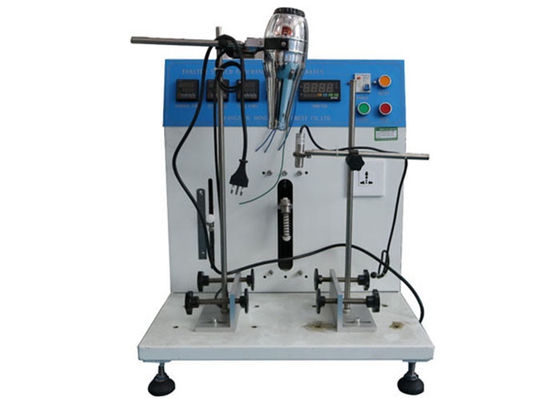

Toaster Switch Endurance Tester Household Appliance Test Device
Standard:
IEC60335-2-9 clause 19.101 of Household and similar electrical appliances – Safety: Part 2-9: Particular requirements for gills, toasters and similar portable cooking appliances.
Application:
The device is used to check the power-on and off endurance that the toasters are operated at rated power supply and under normal operation.
Parameters:
| Parameters / Model | SC-TSET |
| Input Power | 220V/ 50Hz |
| Test Cycles | 1~999999 |
| Cooling Fan Power | 100W |
| Temperature Measuring Device | infrared thermometer (optional) |
| Drive Mode | Motor-driven |
| Equipped with vertical and horizontal keys, with spring to do the buffer to protect the sample keys | |
| With the device which can detect the test sample’s current automatically; current detection upper and lower limits is adjustable, and with a light for status indication; | |
| The baking and cooling actions can automatically repeat starting according preset parameters; with count and temperature discrimination functions; the baking cycles, test cycles, the interval time (0 ~ 99min) can be preset. | |
| Dimensions and weight: L500mm × W620mm × H800mm, 100kg | |
Test sample:
Toasters.
Feature:
The toaster was forced to be cooled to room temperature after each operation, and forced cooling action is performed once per every 6 bakes. This is repeated 500 times. It is with a infrared thermometer.
