1J Pendulum Hammer Impact Test

1J Pendulum Hammer Impact Test

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  1J Pendulum Hammer Impact Test Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-SH101
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD150-350unit

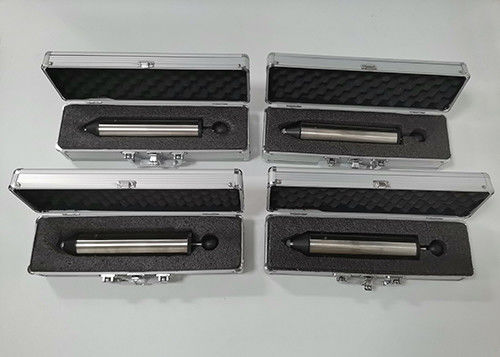

Packaging Details: Aluminum toolbox
Delivery Time: in 5 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 units per month
Detailed Product Description
Usage: Impact Testing Machine Warranty: 12months
Product Name: Impact Testing Machine/Drop Impact Test Machine/drop Tester Impact Energy J: 0.2, 0.35, 0.5, 0.7, 1J
Allowable Error: ±10% The Weight Of Impact Element: 250g±5g
The Power: <10N The Whole Weight: 1450g±10g
High Light:

1J Pendulum Hammer Impact Test


0.7j Pendulum Hammer Impact Test


0.2j pendulum hammer

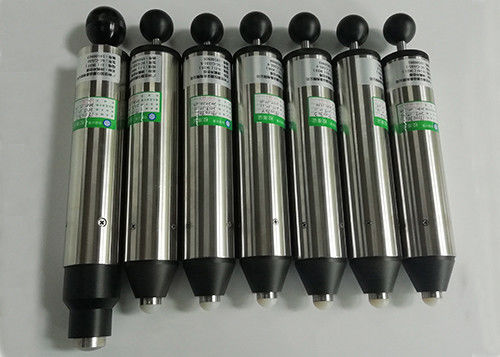

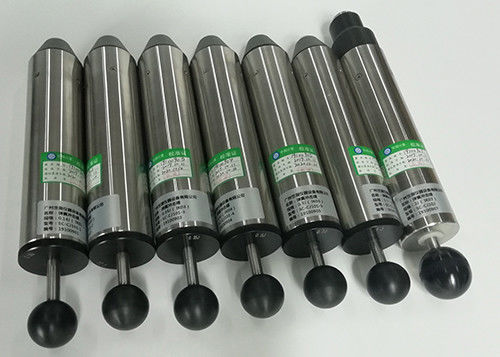

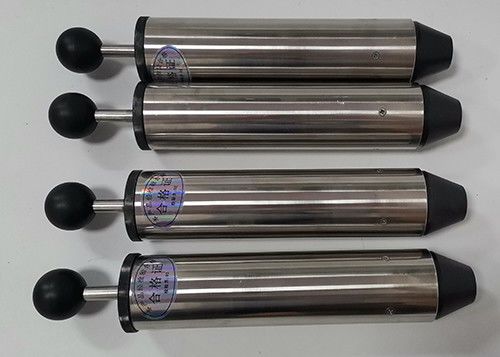

Single And Adjustable Energy Spring Hammers For Impact Testing



Technical parameters:

Model SC-SH101 SC-SH102 SC-SH105 SC-SH106
Impact energy J


single energy



adjust energy


adjust energy

Allowable error ±10% ±10% ±10% ±10%
The weight of Impact element 250g±5g 500g±5g 250g±5g 250g±5g
The power <10N <10N <10N <10N
The whole weight 1250g±10g 1500g±10g 1450g±10g 1450g±10g


Product details:

This spring impact test conforms to the standard requirements of IEC60068-2-63,IEC60068-2-75,IEC60335 and IEC60598. As required in the standards, it is used to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards.

Body: Includes release mechanism and striking element guide, mass 1250 g.
Striking element: With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g
Release Cone: mass 60 g, 10N release force


Method of application:

  • According to the related standards, please fix (or place) the sample, then choose the corresponding energy needed through rotating the plate.
  • Choose the impact test point. And pull the operating handle of the hammer, until the release jaws engage with and the hammer lever teeth (you will hear at this time" the click " sound ). Then the device is in a ready state.
  • Make the device be vertically opposite to the impact test points on the surface of the sample and touch it, then push the device, making the impact component release, to finally strike the sample.



A. After calibrating the device, don’t disassemble it or adjust the compression amount of the spring.

B. If the compression amount of the springs is adjusted, the device must be checked by the measurement department before being used. Otherwise, the accuracy of testing results will be directly influenced.

C. In order to prevent changes of impact energy caused by misadjustment, the products have been sealed in the factory. If you have any question, please contact our factory, who will provide you three guarantees and post-technical services.

D. Measures should be taken to prevent the rust of the hammer spring (drying moistureproof processing).

E. Requirements for environmental conditions: temperature 5~35℃, humidity 45 ~ 75%.
