Product Details:
Payment & Shipping Terms:
|
| Speed: | 100~300rpm | Vibration Method: | Reciprocation Type |
|---|---|---|---|
| Speed Accuracy: | 2rpm | Load Capacity: | 100kg |
| Power Capacity: | 1HP | Standard Motions: | Rotary DC Motion |
| Standard: | EN ANSI,UL,ASTM,ISTA Transport Package Fixed-frequency Sinusoidal Vibration Test Method | Test Samples: | Toys, Electronics, Furniture, Gifts, Ceramics, Packaging And Other Products Packaged To Simulate The Transport Tests |
| High Light: | 300rpm Impact Testing Apparatus,2rpm Impact Testing Apparatus,220V Vibration Test Machine |
||

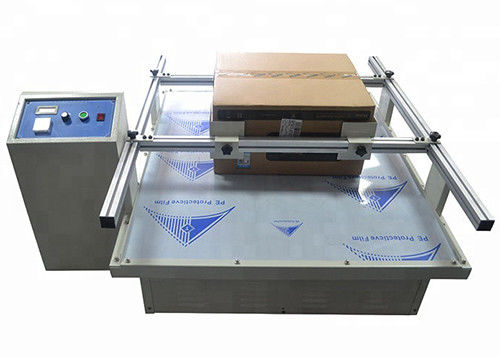

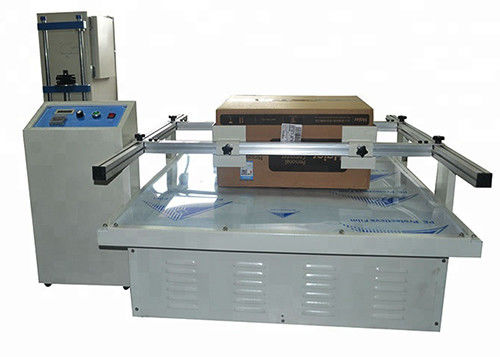

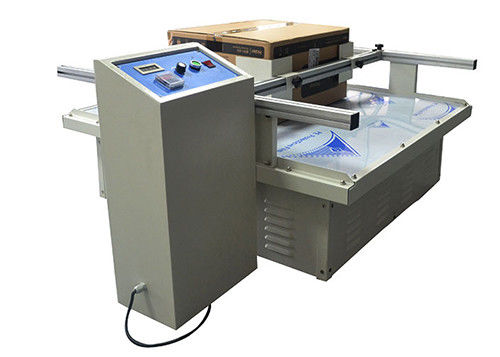

Automobile Transport Simulation Vibration Table Testing Equipment
Parameters
| Speed | 100~300rpm |
| Vibration method | Reciprocation type |
| Load Capacity | 100kg |
| Speed accuracy | 2rpm |
| Time setting range | 0~99.99 hours |
| Power capacity | 1HP |
| Effective test area | 100*110cm |
| Power supply | 220V 50Hz |
| Standard Motions | Rotary DC Motion |
| Dimensions | 120*108*60 cm (LxWxH) |
| Weight | 155kg |
Products
Transport Simulation Vibration Table Testing Equipment is based on the United States and European transport standards, and with reference to the United States of similar equipment to improve manufacturing. The use of eccentric bearings in rotating elliptical trajectories generated to simulate a car or ship the goods during transport the vibration of the collision. Test platform will be fixed on the eccentric bearing, when the eccentric bearing rotation, the test platform for the entire plane would produce an oval-shaped upper and lower front and rear movement, adjust the eccentric shaft with the rotation speed is equivalent to adjust the speed of motor vehicles or vessels.
Applicable Industries
Transport Simulation Vibration Table Testing Equipment applies to toys, electronics, furniture, gifts, ceramics, packaging and other products packaged to simulate the transport tests, in line with the United States and European transport standards.
Main Features
Digital instrument display vibration frequency; synchronous belt transmission mute, very low noise; test items using clamping rail type, easy to operate, safe; machine using heavy-duty channel steel base with anti-vibration pad, easy installation, smooth operation, without Install ground pin screw; DC motor speed control, running smoothly, load capability; rotary vibration (commonly known as Valley-type).
Standards
This instrument meets the following standards: EN ANSI,UL,ASTM,ISTA transport package fixed-frequency sinusoidal vibration test method
