IEC60068-2-63 Impact Testing Apparatus , 1J Impact Hammer Test Equipment

IEC60068-2-63 Impact Testing Apparatus , 1J Impact Hammer Test Equipment

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IEC60068-2-63 Impact Testing Apparatus , 1J Impact Hammer Test Equipment Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-SH01
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD150-350unit

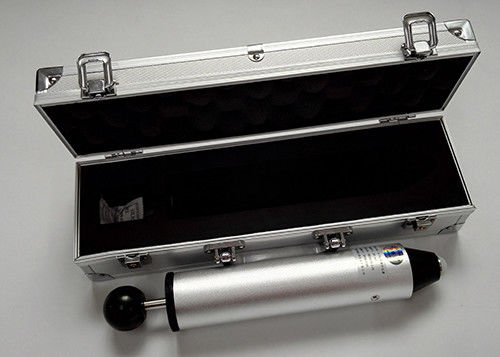

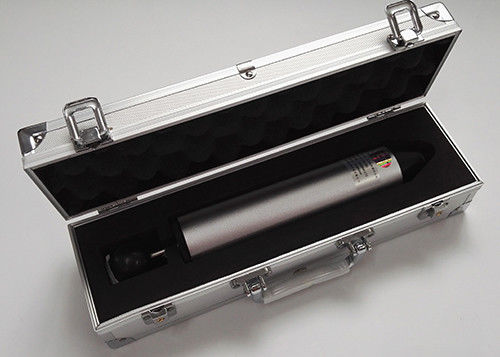

Packaging Details: Aluminum toolbox
Delivery Time: in 5 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 units per month
Detailed Product Description
Usage: Impact Testing Machine Warranty: 12months
Product Name: Impact Testing Machine/Drop Impact Test Machine/drop Tester Impact Energy J: 0.2, 0.35, 0.5, 0.7, 1J
Allowable Error: ±10% The Weight Of Impact Element: 250g±5g
The Power: <10N The Whole Weight: 1450g±10g
High Light:

IEC60068-2-63 Impact Testing Apparatus


1J Impact Testing Apparatus


0.35J impact hammer test equipment

Spring Hammer Test Equipment IEC60068-2-63 Impact Test Apparatus



Technical parameters:


energy J


Allowable error ±10%
The weight of Impact element 250g±5g
The power <10N
The whole weight 1450g±10g


This spring impact test conforms to the standard requirements of IEC60068-2-63, IEC60068-2-75, IEC60335 and IEC60598. As required in the standards, it is used to test the mechanical integrity of product enclosures. After applying the impact with the hammer, the product is examined with accessibility probes to determine access to shock, energy, and injury hazards.

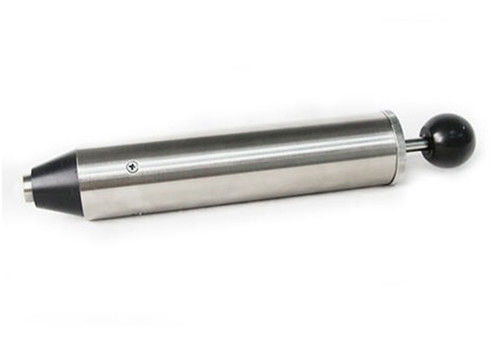

Includes release mechanism and striking element guide, mass 1250 g.

Striking element:

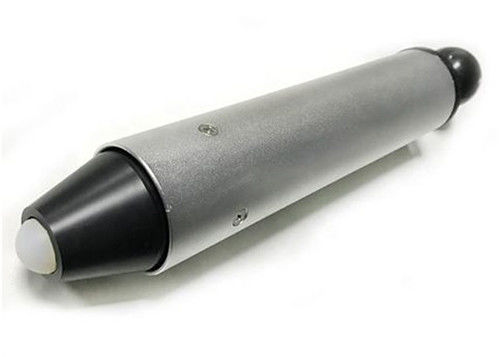

With cocking knob and hammer head, face is polyamide, hemispherical with a radius of 10 mm, hardness of HR85-100, mass 250 g


Release Cone:

mass 60 g, 10N release force
