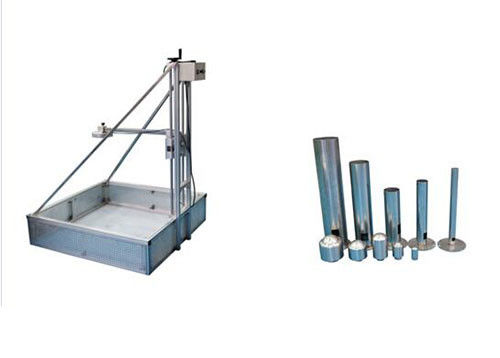

IEC60068 50J Vertical Hammer Impact Testing Machine

IEC60068 50J Vertical Hammer Impact Testing Machine


Large Image :  IEC60068 50J Vertical Hammer Impact Testing Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: SHC
Certification: CNAS、TUV、ITS、CSA、BV、SGS (cost additional)
Model Number: SC-CJ09
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD1000-5000 unit
Packaging Details: carton
Delivery Time: in 15 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 999 units per month
Detailed Product Description
Usage: Impact Testing Machine Standard: IEC60068-2-75 Test Ehc
Height Distance: 0-1000mm Hammer: Optional 1J/2J/5J/10J/20J/50J
Conduit: Φ35×300mm Material: Stainless Steel
Energy: 1-50J Power: Electronic
High Light:

50J Impact Testing Machine


IEC60068 Impact Testing Machine


20J impact testing equipment

IEC60068 Test Ehc Vertical Hammer Impact Test Apparatus Easy Operate



Product details:


The vertical hammer impact test apparatus conforms to the standard requirement of the IEC60068-2-75 Test Ehc. The hammer consists basically of a striking element which falls freely from rest through a vertical height, selected from following table, on to the specimen surface held in a horizontal plane. The fall of the striking element shall be along a guideway, for example a tube, with negligible braking. This guideway shall not rest on the specimen and the striking element shall be free of the guideway on striking the specimen.


Technical parameters:


The height distance:0-1000mm

The hammer: 2J, stainless steel

The conduit: Φ35×300mm

The way of releasing: by manual


Table-Height of fall:




0.2 0.35 0.5 0.7 1 2 5 10 20 50




0.25 0.25 0.25 0.25 0.25 0.5 1.7 5 5 10

Height of fall mm±1%

80 140 200 280 400 400 300 200 400 500

The height of fall shall be as giver in above table, the equivalent mass stated therein being equal to the actual mass of the striking element.


Operation steps:


A proper hammer is chose according to the related standard requirement. Place the sample on the bottom of the conduit and adjust the height of the conduit the height is measured by the ruler) Next, put the hammer on the top of the conduit and press the release button. Thus the impact hammer falls down and hit the sample.
