| Usage: | Impact Testing Machine | Standard: | IEC60068-2-75 |
|---|---|---|---|
| Pendulum Shaft Length: | 0-1000mm | Mounting Bracket Quality: | 10±1Kg |
| Impact Element Mass: | 150±1g(0.2) / 200±1g(0.5) (optional) | Material: | Stainless Steel |
| Bracket Rotation Angle: | ±180° Arbitrarily Adjustable | Impact Heigh: | 100mm, 150mm, 200mm, 250mm, 400mm |
| High Light: | IEC60068 Pendulum Hammer Impact Test,1J Pendulum Hammer Impact Test,1J pendulum hammer |
||

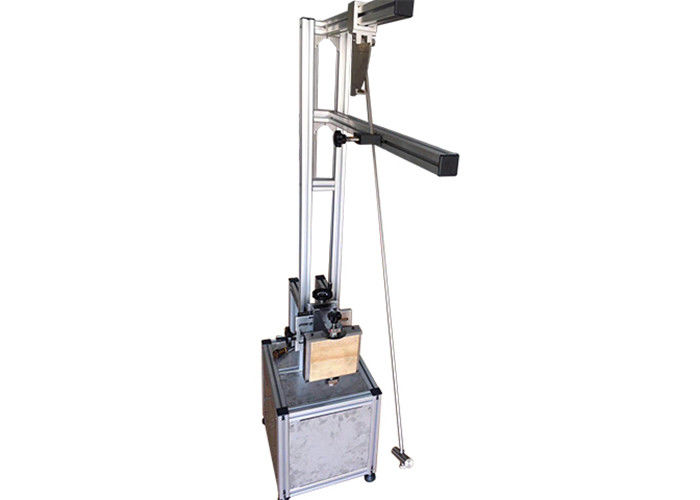

IEC60068 Pendulum Hammer Impact Test Apparatus For Drop Impact Resistance
Product details:
The pendulum impact test device is made according to the requirements of the Eh hammer test of the test method of the environmental test of the electrical and electronic products of IEC60068-2-75. The test device is mainly oscillated by the upper end around its swing axis in a vertical plane. The pendulum is composed. The axis of the pendulum axis is 1000 mm above the measuring point. The pendulum consists of a rigid pendulum shaft and a matching impact element. Test specimens that are heavier, bulky, or difficult to handle can be tested using a hand-held pendulum. The device is mainly used for mechanical strength testing of electrical accessories such as plugs, sockets and switches for household and similar purposes. The device is generally fixed vertically on a solid wall, and the mounting bracket can be adjusted front and rear, and the impact angle is adjustable.
Parameters:
| Item | Technical Parameters |
| Impact element mass | 150±1g(0.2) / 200±1g(0.5) (optional) |
| Mounting bracket quality | 10±1Kg |
| Bracket rotation angle | ±180° arbitrarily adjustable |
| Pendulum shaft length | 1000±1mm |
| Swing shaft material | steel pipe with outer diameter of 9 mm and wall thickness of 0.5 mm |
| Pendulum shaft mass | 1mm=1g |
| Impact height | 100mm, 150mm, 200mm, 250mm, 400mm |
