| Standard: | IEC60335-2-3 | Name: | Electric Iron Drop Tester |
|---|---|---|---|
| Purpose: | To Check The Mechanical Strength Of Electric Irons By Repeated Drop | Drive Mode: | Motor And CAM Drive |
| Working Speed: | ≤20 Turn/min | Height Of Fall: | 40㎜ |
| Supporting Steel Plate: | Thickness>15㎜,quality>15kg | Power Supply: | AC 220V 50HZ |
| High Light: | IEC60335-2-3 Electric Iron Drop Tester,220v Electric Iron Drop Tester,50HZ electrical household appliance |
||

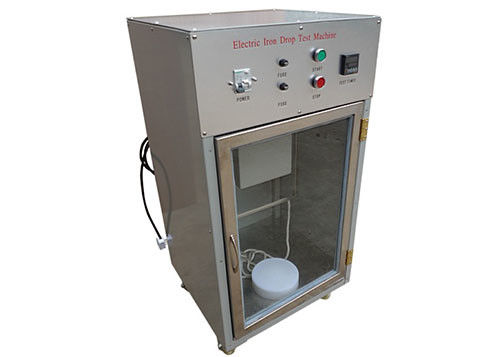

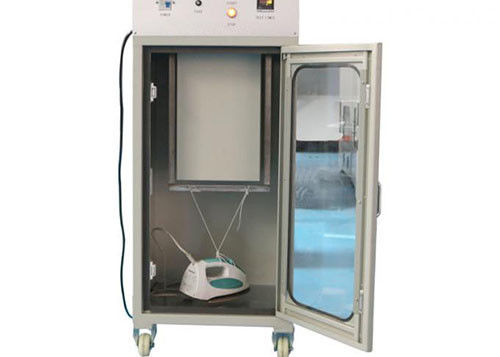

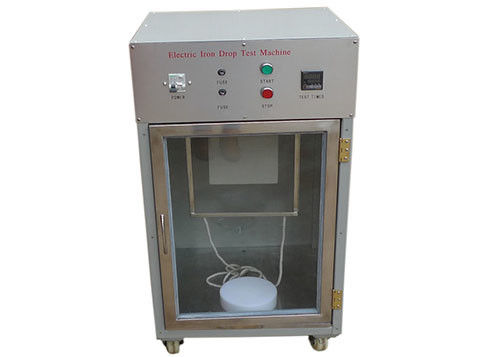

IEC60335-2-3 Electric Iron Drop Tester Electrical Appliance Tester
Technical parameters:
| Power supply | AC 220V 50HZ |
| Drive mode | Motor and CAM drive |
| Test times | 1~9999 display,preset |
| Working speed | ≤20 turn/min |
| Height of fall | 40㎜ |
| Supporting steel plate | thickness>15㎜,quality>15kg |
| Size | 500*520*980mm |
Product information:
To check the mechanical strength of electric irons by repeated drop onto a steel plate according to IEC60335-2-3 clause 21.101.
The electric iron is operated under normal operation at rated power input and, except for cordless irons; the soleplate temperature is maintained under these conditions throughout the test.
Standard Outfit:
1 steel plate, at least 15mm thick, mass at least 15 kg, rigidly supported,
1 lifting device with radial cam for a slow lifting of the specimen for 40 mm, for a sudden release for a free fall and for a rest time on the steel plate of ≈15% of the test duration,
1 gear motor, to drive the lifting device, for 20 drops per minute maximum,

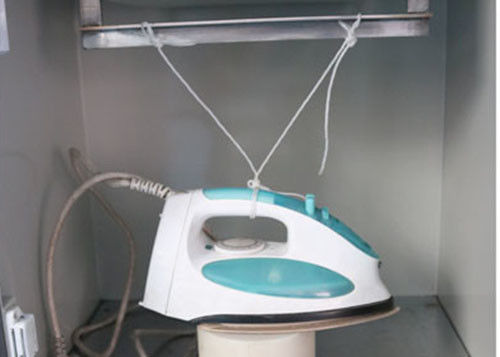

1 falling assembly, with tie-bar for fastening the specimen, with 1 pair of distance pieces 40 mm.
1 switchgear, with main switch, fuses and preset counter to switch off the unit after the preset number of strokes.
