Product Details:
Payment & Shipping Terms:
|
| Standard: | IEC 60335-2-4 | Application: | Used To Measure The Impact Strength Properties Of The Cover Of Electrical Appliances Loaded From The Top |
|---|---|---|---|
| Test Sample: | Spin Extractors, Washing Machines | Impact Hammer: | 70mm Rubber Hemisphere |
| Hardness: | Between 40IRHD And 50IRHD | Impact Height: | 100mm, Adjustable |
| Locking Method: | Self Lock When Upward The Hammer | Release Method: | Manual Release |
| High Light: | SGS IEC60335 Household Appliance Test Equipment,SGS Household Appliance Test Equipment IEC60335,SGS Hemisphere Rubber Impact Tester |
||

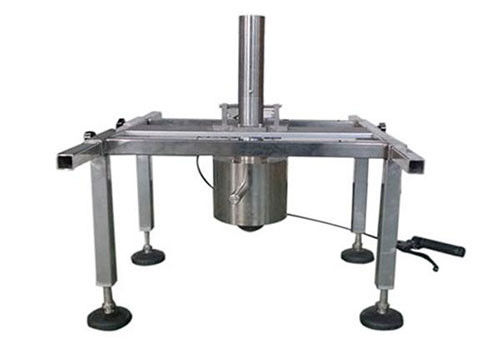

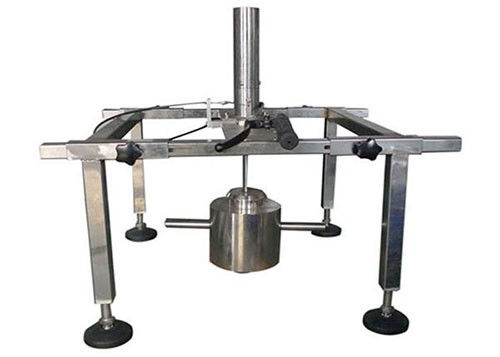

IEC60335 Hemisphere Rubber Impact Tester Household Electrical Appliances
Standard:
IEC 60335-2-4 household and similar electrical appliances – safety: part 2-4: particular requirements for spin extractors, clause 21.101; IEC 60335-2-7 part 2-7: particular requirements for washing machines, clause 21.101.
Application:
The hemisphere rubber impact tester is used to measure the impact strength properties of the cover of electrical appliances loaded from the top.
Test sample:
Spin extractors, washing machines
Parameters:
| Impact hammer |
70mm rubber hemisphere handle made of stainless steel, mass of 20kg. |
| hardness |
between 40IRHD and 50IRHD |
| Impact height | 100mm, adjustable |
| Locking method | self lock when upward the hammer |
| Release method | manual release |
| Sample size | W*D=(200~800)*480mm |
Feature:
The device features a self-locking mechanism for its impact hammer and is released through a handle; Stainless steel frame, 200mm-800mm width adjustable
